产品名称：DIN472孔用弹性挡圈

执行标准： 德标DIN472-2011

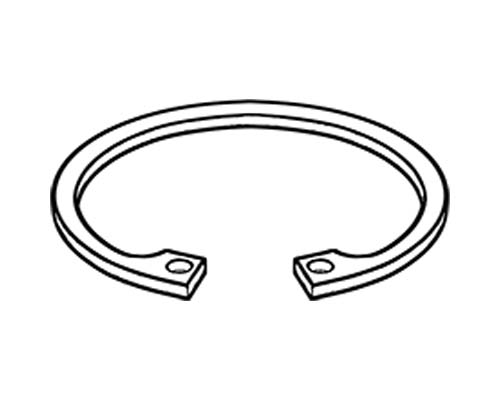

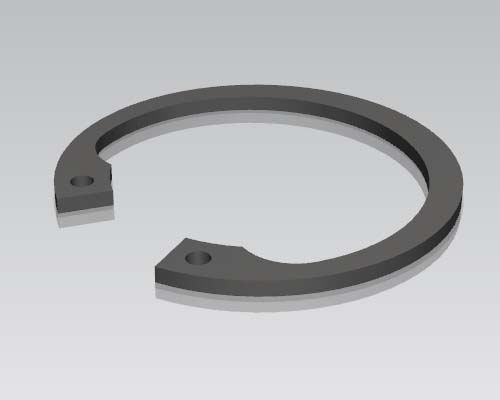

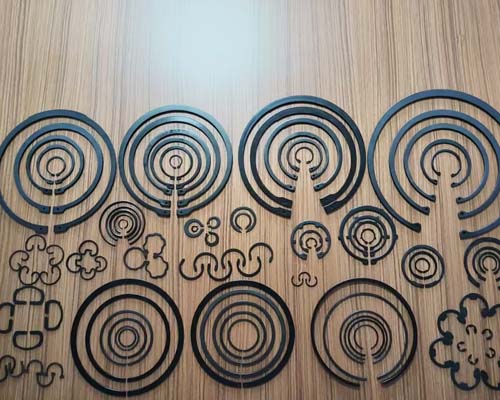

产品概述：DIN472孔用弹性挡圈也称为内卡簧，孔用卡簧，C型扣环等名称，顾名思义就是安装于预留的圆孔内，主要作用是固定零部件之间的轴向运动防止松动与脱落，因为孔卡的外径要比装配预留圆孔的直径径稍大。安装时须用使用专业工具卡簧钳，先将钳嘴弯针分别插入挡圈的钳孔中同时夹紧挡圈，这样才能放入预先加工好的圆孔内槽。孔用弹性挡圈DIN472为在孔内固定零部件用的弹性挡圈，通常预留孔的直径规格一般在8mm-200mm的普通孔用挡圈以及20mm-100mm的加厚孔用挡圈,所以孔用挡圈按照挡圈厚度分为标准型和加厚型。

产品材料：常规材料有弹簧钢（65Mn、C67S、C75S），马氏体不锈钢（2Cr13、1.4122），奥氏体不锈钢304等。

产品硬度：产品的性能硬度标准，公称直径≤48mm的洛氏硬度应符合：47HRC-54HRC。公称直径48mm-200mm的规格洛氏硬度应符合：44HRC-51HRC。公称直径200-300mm的规格洛氏硬度应符合：40HRC-47HRC。公称直径300mm-420mm的规格洛氏硬度应符合：38HRC-45HRC。

产品表面：表面多以发黑或者磷化为主，如需盐雾要求可以通过机械镀锌，达克罗、久美特、电泳或者钝化处理来增加盐雾要求，以防其他部门处理产生氢脆现象。

产品直径：φ8-φ1000mm

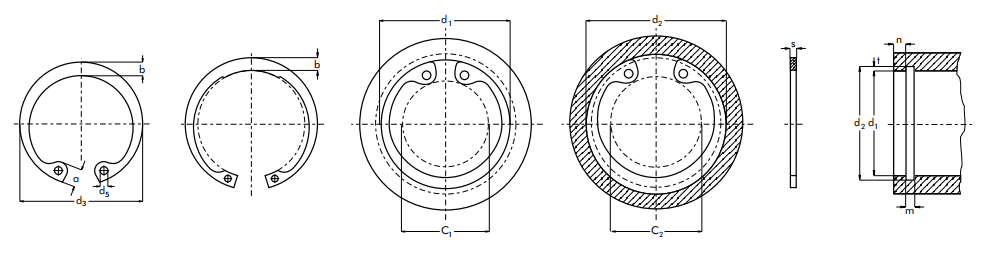

产品尺寸

d1	S	Tol	d3	Tol	a max	≈b	d5 min	Wt(g)	d2	Tol	m min	t	n	FN(KN)
8	0.8	–0.05	8.7	0.36 –0.10	2.4	1.1	1	0.1	8.4	0.09	0.9	0.2	0.6	0.86
9	0.8	–0.05	9.8	0.36 –0.10	2.5	1.3	1	0.13	9.4	0.09	0.9	0.2	0.6	0.96
10	1	–0.06	10.8	0.36 –0.10	3.2	1.4	1.2	0.26	10.4	0.11	1.1	0.2	0.6	1.08
11	1	–0.06	11.8	0.36 –0.10	3.3	1.5	1.2	0.31	11.4	0.11	1.1	0.2	0.6	1.17
12	1	–0.06	13	0.36 –0.10	3.4	1.7	1.5	0.37	12.5	0.11	1.1	0.25	0.8	1.6
13	1	–0.06	14.1	0.36 –0.10	3.6	1.8	1.5	0.42	13.6	0.11	1.1	0.3	0.9	2.1
14	1	–0.06	15.1	0.36 –0.10	3.7	1.8	1.7	0.52	14.6	0.11	1.1	0.3	0.9	2.25
15	1	–0.06	16.2	0.36 –0.10	3.7	2	1.7	0.56	15.7	0.11	1.1	0.35	1.1	2.8
16	1	–0.06	17.3	0.36 –0.10	3.8	2	1.7	0.6	16.8	0.11	1.1	0.4	1.2	3.4
17	1	–0.06	18.3	0.42 –0.13	3.9	2.1	1.7	0.65	17.8	0.11	1.1	0.4	1.2	3.6
18	1	–0.06	19.5	0.42 –0.13	4.1	2.2	2	0.74	19	0.13	1.1	0.5	1.5	4.8
19	1	–0.06	20.5	0.42 –0.13	4.1	2.2	2	0.73	20	0.13	1.1	0.5	1.5	5.1
20	1	–0.06	21.5	0.42 –0.13	4.1	2.3	2	0.9	21	0.13	1.1	0.5	1.5	5.4
21	1	–0.06	22.5	0.42 –0.13	4.2	2.4	2	1	22	0.13	1.1	0.5	1.5	5.7
22	1	–0.06	23.5	0.42 –0.13	4.2	2.5	2	1.1	23	0.13	1.1	0.5	1.5	5.9
23	1.2	–0.06	24.6	0.42 –0.13	4.2	2.5	2	1.34	24.1	0.13	1.3	0.55	1.7	6.8
24	1.2	–0.06	25.9	0.42 –0.21	4.3	2.6	2	1.42	25.2	0.21	1.3	0.6	1.8	7.7
25	1.2	–0.06	26.9	0.42 –0.21	4.5	2.7	2	1.5	26.2	0.21	1.3	0.6	1.8	8
26	1.2	–0.06	27.9	0.42 –0.21	4.7	2.8	2	1.6	27.2	0.21	1.3	0.6	1.8	8.4
27	1.2	–0.06	29.1	0.42 –0.21	4.7	2.9	2	1.75	28.4	0.21	1.3	0.7	2.1	10.1
28	1.2	–0.06	30.1	0.50 –0.25	4.8	2.9	2	1.8	29.4	0.21	1.3	0.7	2.1	10.5
29	1.2	–0.06	31.1	0.50 –0.25	4.8	3	2	1.88	30.4	0.25	1.3	0.7	2.1	10.9
30	1.2	–0.06	32.1	0.50 –0.25	4.8	3	2	2.06	31.4	0.25	1.3	0.7	2.1	11.3
31	1.2	–0.06	33.4	0.50 –0.25	5.2	3.1	2.5	2.1	32.7	0.25	1.3	0.85	2.6	14.1
32	1.2	–0.06	34.4	0.50 –0.25	5.4	3.2	2.5	2.21	33.7	0.25	1.3	0.85	2.6	14.6
33	1.2	–0.06	35.5	0.50 –0.25	5.4	3.3	2.5	2.4	34.7	0.25	1.3	0.85	2.6	15
34	1.5	–0.06	36.5	0.50 –0.25	5.4	3.3	2.5	3.2	35.7	0.25	1.6	0.85	2.6	15.4
35	1.5	–0.06	37.8	0.50 –0.25	5.4	3.4	2.5	3.54	37	0.25	1.6	1	3	18.8
36	1.5	–0.06	38.8	0.50 –0.25	5.4	3.5	2.5	3.7	38	0.25	1.6	1	3	19.4
37	1.5	–0.06	39.8	0.50 –0.25	5.5	3.6	2.5	3.74	39	0.25	1.6	1	3	19.8
38	1.5	–0.06	40.8	0.50 –0.25	5.5	3.7	2.5	3.9	40	0.25	1.6	1	3	22.5
39	1.5	–0.06	42	0.90 –0.39	5.6	3.8	2.5	4	41	0.25	1.6	1	3	26
40	1.75	–0.06	43.5	0.90 –0.39	5.8	3.9	2.5	4.7	42.5	0.25	1.85	1.25	3.8	27
41	1.75	–0.06	44.5	0.90 –0.39	5.9	4	2.5	5.1	43.5	0.25	1.85	1.25	3.8	27.6
42	1.75	–0.06	45.5	0.90 –0.39	5.9	4.1	2.5	5.4	44.5	0.25	1.85	1.25	3.8	28.4
43	1.75	–0.06	46.5	0.90 –0.39	5.9	4.2	2.5	5.6	45.5	0.25	1.85	1.25	3.8	28.8
44	1.75	–0.06	47.5	0.90 –0.39	6	4.2	2.5	5.8	46.5	0.25	1.85	1.25	3.8	29.5
45	1.75	–0.06	48.5	0.90 –0.39	6.2	4.3	2.5	6	47.5	0.25	1.85	1.25	3.8	30.2
46	1.75	–0.06	49.5	0.90 –0.39	6.3	4.4	2.5	6.05	48.5	0.25	1.85	1.25	3.8	30.8
47	1.75	–0.06	50.5	1.10 –0.46	6.4	4.4	2.5	6.1	49.5	0.25	1.85	1.25	3.8	31.4
48	1.75	–0.06	51.5	1.10 –0.46	6.4	4.5	2.5	6.7	50.5	0.3	1.85	1.25	3.8	32
50	2	–0.07	54.2	1.10 –0.46	6.5	4.6	2.5	7.3	53	0.3	2.15	1.5	4.5	40.5
51	2	–0.07	55.2	1.10 –0.46	6.5	4.7	2.5	7.75	54	0.3	2.15	1.5	4.5	41.2
52	2	–0.07	56.2	1.10 –0.46	6.7	4.7	2.5	8.2	55	0.3	2.15	1.5	4.5	42
53	2	–0.07	57.2	1.10 –0.46	6.7	4.9	2.5	8.22	56	0.3	2.15	1.5	4.5	42.9
54	2	–0.07	58.2	1.10 –0.46	6.7	5	2.5	8.25	57	0.3	2.15	1.5	4.5	43.6
55	2	–0.07	59.2	1.10 –0.46	6.8	5	2.5	8.3	58	0.3	2.15	1.5	4.5	44.4
56	2	–0.07	60.2	1.10 –0.46	6.8	5.1	2.5	8.8	59	0.3	2.15	1.5	4.5	45.2
57	2	–0.07	61.2	1.10 –0.46	6.8	5.1	2.5	9.4	60	0.3	2.15	1.5	4.5	46
58	2	–0.07	62.2	1.10 –0.46	6.9	5.2	2.5	10.5	61	0.3	2.15	1.5	4.5	46.7
60	2	–0.07	64.2	1.10 –0.46	7.3	5.4	2.5	11.1	63	0.3	2.15	1.5	4.5	48.3
62	2	–0.07	66.2	1.10 –0.46	7.3	5.5	2.5	11.2	65	0.3	2.15	1.5	4.5	49.8
63	2	–0.07	67.2	1.10 –0.46	7.3	5.6	2.5	12.4	66	0.3	2.15	1.5	4.5	50.6
64	2	–0.07	68.2	1.10 –0.46	7.4	5.7	2.5	12.45	67	0.3	2.15	1.5	4.5	51.4
65	2.5	–0.07	69.2	1.10 –0.46	7.6	5.8	3	14.3	68	0.3	2.65	1.5	4.5	51.8
67	2.5	–0.07	71.5	1.10 –0.46	7.7	6	3	15.3	70	0.3	2.65	1.5	4.5	53.8
68	2.5	–0.07	72.5	1.10 –0.46	7.8	6.1	3	16	71	0.3	2.65	1.5	4.5	56.2
70	2.5	–0.07	74.5	1.10 –0.46	7.8	6.2	3	16.5	73	0.3	2.65	1.5	4.5	56.2
72	2.5	–0.07	76.5	1.10 –0.46	7.8	6.4	3	18.1	75	0.3	2.65	1.5	4.5	58
75	2.5	–0.07	79.5	1.10 –0.46	7.8	6.6	3	18.8	78	0.3	2.65	1.5	4.5	60
77	2.5	–0.07	82.5	1.30 –0.54	8.5	6.8	3	20.4	80	0.3	2.65	1.5	4.5	61.6
78	2.5	–0.07	82.5	1.30 –0.54	8.5	6.8	3	20.4	81	0.35	2.65	1.5	4.5	62.3
80	2.5	–0.07	85.5	1.30 –0.54	8.5	7	3	22	83.5	0.35	2.65	1.75	5.3	74.6
81	2.5	–0.07	86.5	1.30 –0.54	8.5	7	3	23	84.5	0.35	2.65	1.75	5.3	75.8
82	2.5	–0.07	87.5	1.30 –0.54	8.5	7	3	24	85.5	0.35	2.65	1.75	5.3	76.6
83	2.5	–0.07	88.5	1.30 –0.54	8.5	7	3	25	86.5	0.35	2.65	1.75	5.3	77.5
85	3	–0.08	90.5	1.30 –0.54	8.6	7.2	3.5	25.3	88.5	0.35	3.15	1.75	5.3	79.5
87	3	–0.08	93.5	1.30 –0.54	8.6	7.4	3.5	31	90.5	0.35	3.15	1.75	5.3	81.3
88	3	–0.08	93.5	1.30 –0.54	8.6	7.4	3.5	31	91.5	0.35	3.15	1.75	5.3	82
90	3	–0.08	95.5	1.30 –0.54	8.6	7.6	3.5	33	93.5	0.35	3.15	1.75	5.3	84
92	3	–0.08	97.5	1.30 –0.54	8.7	7.8	3.5	35	95.5	0.35	3.15	1.75	5.3	85
95	3	–0.08	100.5	1.30 –0.54	8.8	8.1	3.5	37	98.5	0.35	3.15	1.75	5.3	88
97	3	–0.08	103.5	1.30 –0.54	9	8.3	3.5	41	100.5	0.35	3.15	1.75	5.3	90
98	3	–0.08	103.5	1.30 –0.54	9	8.3	3.5	41	101.5	0.35	3.15	1.75	5.3	91
100	3	–0.08	105.5	1.30 –0.54	9.2	8.4	3.5	42	103.5	0.35	3.15	1.75	5.3	93
102	4	–0.10	108	1.30 –0.54	9.5	8.5	3.5	55	106	0.54	4.15	2	6	108
105	4	–0.10	112	1.30 –0.54	9.5	8.7	3.5	56	109	0.54	4.15	2	6	112
107	4	–0.10	115	1.30 –0.54	9.5	8.9	3.5	60	111	0.54	4.15	2	6	114
108	4	–0.10	115	1.30 –0.54	9.5	8.9	3.5	60	112	0.54	4.15	2	6	115
110	4	–0.10	117	1.30 –0.54	10.4	9	3.5	64.5	114	0.54	4.15	2	6	117
112	4	–0.10	119	1.30 –0.54	10.5	9.1	3.5	72	116	0.54	4.15	2	6	119
115	4	–0.10	122	1.50 –0.63	10.5	9.3	3.5	74.5	119	0.54	4.15	2	6	122
117	4	–0.10	125	1.50 –0.63	10.7	9.6	3.5	75.5	121	0.63	4.15	2	6	124
118	4	–0.10	125	1.50 –0.63	10.7	9.6	3.5	75.5	122	0.63	4.15	2	6	125
120	4	–0.10	127	1.50 –0.63	11	9.7	3.5	77	124	0.63	4.15	2	6	127
122	4	–0.10	129	1.50 –0.63	11	9.8	4	78	126	0.63	4.15	2	6	129
125	4	–0.10	132	1.50 –0.63	11	10	4	79	129	0.63	4.15	2	6	132
127	4	–0.10	135	1.50 –0.63	11	10	4	81	131	0.63	4.15	2	6	135
128	4	–0.10	135	1.50 –0.63	11	10.2	4	81	132	0.63	4.15	2	6	136
130	4	–0.10	137	1.50 –0.63	11	10.2	4	82	134	0.63	4.15	2	6	138
132	4	–0.10	139	1.50 –0.63	11	10.3	4	83	136	0.63	4.15	2	6	140
135	4	–0.10	142	1.50 –0.63	11.2	10.5	4	84	139	0.63	4.15	2	6	143
137	4	–0.10	145	1.50 –0.63	11.2	10.6	4	86	141	0.63	4.15	2	6	145
138	4	–0.10	145	1.50 –0.63	11.2	10.6	4	86	142	0.63	4.15	2	6	146
140	4	–0.10	147	1.50 –0.63	11.2	10.7	4	87.5	144	0.63	4.15	2	6	148
142	4	–0.10	149	1.50 –0.63	11.3	10.8	4	89	146	0.63	4.15	2	6	150
145	4	–0.10	152	1.50 –0.63	11.4	10.9	4	93	149	0.63	4.15	2	6	153
147	4	–0.10	155	1.50 –0.63	11.8	11.1	4	100	151	0.63	4.15	2	6	156
148	4	–0.10	155	1.50 –0.63	11.8	11.1	4	100	152	0.63	4.15	2	6	157
150	4	–0.10	158	1.50 –0.63	12	11.2	4	105	155	0.63	4.15	2.5	7.5	191
152	4	–0.10	161	1.50 –0.63	12	11.3	4	106	157	0.63	4.15	2.5	7.5	202
155	4	–0.10	164	1.50 –0.63	12	11.4	4	107	160	0.63	4.15	2.5	7.5	206
157	4	–0.10	167	1.50 –0.63	12.3	11.5	4	109	162	0.63	4.15	2.5	7.5	208
158	4	–0.10	167	1.50 –0.63	12.3	11.5	4	109	163	0.63	4.15	2.5	7.5	210
160	4	–0.10	169	1.50 –0.63	13	11.6	4	110	165	0.63	4.15	2.5	7.5	212
162	4	–0.10	171.5	1.50 –0.63	13	11.7	4	118	167	0.63	4.15	2.5	7.5	215
165	4	–0.10	174.5	1.50 –0.63	13	11.8	4	125	170	0.63	4.15	2.5	7.5	219
167	4	–0.10	177.5	1.50 –0.63	13.5	12.1	4	135	172	0.63	4.15	2.5	7.5	221
168	4	–0.10	177.5	1.50 –0.63	13.5	12.1	4	135	173	0.63	4.15	2.5	7.5	223
170	4	–0.10	179.5	1.50 –0.63	13.5	12.2	4	140	175	0.63	4.15	2.5	7.5	225
172	4	–0.10	181.5	1.70 –0.72	13.5	12.5	4	145	177	0.63	4.15	2.5	7.5	228
175	4	–0.10	184.5	1.70 –0.72	13.5	12.7	4	150	180	0.63	4.15	2.5	7.5	232
177	4	–0.10	187.5	1.70 –0.72	14.2	12.9	4	162	182	0.72	4.15	2.5	7.5	235
178	4	–0.10	187.5	1.70 –0.72	14.2	12.9	4	162	183	0.72	4.15	2.5	7.5	236
180	4	–0.10	189.5	1.70 –0.72	14.2	13.2	4	165	185	0.72	4.15	2.5	7.5	238
182	4	–0.10	191.5	1.70 –0.72	14.2	13.5	4	168	187	0.72	4.15	2.5	7.5	241
185	4	–0.10	194.5	1.70 –0.72	14.2	13.7	4	170	190	0.72	4.15	2.5	7.5	245
187	4	–0.10	197.5	1.70 –0.72	14.2	13.8	4	174	192	0.72	4.15	2.5	7.5	248
188	4	–0.10	197.5	1.70 –0.72	14.2	13.8	4	174	193	0.72	4.15	2.5	7.5	249
190	4	–0.10	199.5	1.70 –0.72	14.2	13.8	4	175	195	0.72	4.15	2.5	7.5	251
192	4	–0.10	201.5	1.70 –0.72	14.2	13.8	4	178	197	0.72	4.15	2.5	7.5	254
195	4	–0.10	204.5	1.70 –0.72	14.2	13.8	4	183	200	0.72	4.15	2.5	7.5	258
197	4	–0.10	207.5	1.70 –0.72	14.2	14	4	190	202	0.72	4.15	2.5	7.5	260
198	4	–0.10	207.5	1.70 –0.72	14.2	14	4	190	203	0.72	4.15	2.5	7.5	262
200	4	–0.10	209.5	1.70 –0.72	14.2	14	4	195	205	0.72	4.15	2.5	7.5	265
202	5	–0.12	214	1.70 –0.72	14.2	14	4	210	208	0.72	5.15	3	9	321
205	5	–0.12	217	1.70 –0.72	14.2	14	4	225	211	0.72	5.15	3	9	326
207	5	–0.12	217	1.70 –0.72	14.2	14	4	225	213	0.72	5.15	3	9	329
208	5	–0.12	222	1.70 –0.72	14.2	14	4	270	214	0.72	5.15	3	9	331
210	5	–0.12	222	1.70 –0.72	14.2	14	4	270	216	0.72	5.15	3	9	333
212	5	–0.12	222	1.70 –0.72	14.2	14	4	270	218	0.72	5.15	3	9	337
215	5	–0.12	227	1.70 –0.72	14.2	14	4	300	221	0.72	5.15	3	9	341
217	5	–0.12	227	1.70 –0.72	14.2	14	4	300	223	0.72	5.15	3	9	345
218	5	–0.12	232	1.70 –0.72	14.2	14	4	315	224	0.72	5.15	3	9	346
220	5	–0.12	232	1.70 –0.72	14.2	14	4	315	226	0.72	5.15	3	9	349
222	5	–0.12	232	1.70 –0.72	14.2	14	4	315	228	0.72	5.15	3	9	353
225	5	–0.12	237	1.70 –0.72	14.2	14	4	323	231	0.72	5.15	3	9	357
227	5	–0.12	237	1.70 –0.72	14.2	14	4	323	233	0.72	5.15	3	9	361
228	5	–0.12	242	1.70 –0.72	14.2	14	4	330	234	0.72	5.15	3	9	362
230	5	–0.12	242	1.70 –0.72	14.2	14	4	330	236	0.72	5.15	3	9	365
232	5	–0.12	242	2.00 –0.81	14.2	14	4	330	238	0.72	5.15	3	9	369
235	5	–0.12	247	2.00 –0.81	14.2	14	4	338	241	0.72	5.15	3	9	373
237	5	–0.12	247	2.00 –0.81	14.2	14	4	338	243	0.72	5.15	3	9	376
238	5	–0.12	252	2.00 –0.81	14.2	14	4	345	244	0.72	5.15	3	9	378
240	5	–0.12	252	2.00 –0.81	14.2	14	4	345	246	0.72	5.15	3	9	380
242	5	–0.12	252	2.00 –0.81	14.2	14	4	345	248	0.81	5.15	3	9	385
245	5	–0.12	257	2.00 –0.81	14.2	14	4	353	251	0.81	5.15	3	9	389
247	5	–0.12	257	2.00 –0.81	14.2	14	4	353	253	0.81	5.15	3	9	392
248	5	–0.12	262	2.00 –0.81	14.2	14	4	360	254	0.81	5.15	3	9	394
250	5	–0.12	262	2.00 –0.81	14.2	14	4	360	256	0.81	5.15	3	9	396
252	5	–0.12	262	2.00 –0.81	14.2	16	5	360	260	0.81	5.15	4	12	535
255	5	–0.12	270	2.00 –0.81	16.2	16	5	368	263	0.81	5.15	4	12	541
257	5	–0.12	270	2.00 –0.81	16.2	16	5	368	265	0.81	5.15	4	12	546
258	5	–0.12	275	2.00 –0.81	16.2	16	5	375	266	0.81	5.15	4	12	548
260	5	–0.12	275	2.00 –0.81	16.2	16	5	375	268	0.81	5.15	4	12	553
262	5	–0.12	275	2.00 –0.81	16.2	16	5	375	270	0.81	5.15	4	12	556
265	5	–0.12	280	2.00 –0.81	16.2	16	5	383	273	0.81	5.15	4	12	563
267	5	–0.12	280	2.00 –0.81	16.2	16	5	383	275	0.81	5.15	4	12	566
268	5	–0.12	285	2.00 –0.81	16.2	16	5	388	276	0.81	5.15	4	12	570
270	5	–0.12	285	2.00 –0.81	16.2	16	5	388	278	0.81	5.15	4	12	573
272	5	–0.12	285	2.00 –0.81	16.2	16	5	388	280	0.81	5.15	4	12	577
275	5	–0.12	290	2.00 –0.81	16.2	16	5	393	283	0.81	5.15	4	12	585
277	5	–0.12	290	2.00 –0.81	16.2	16	5	393	285	0.81	5.15	4	12	587
278	5	–0.12	295	2.00 –0.81	16.2	16	5	400	286	0.81	5.15	4	12	590
280	5	–0.12	295	2.00 –0.81	16.2	16	5	400	288	0.81	5.15	4	12	593
282	5	–0.12	295	2.00 –0.81	16.2	16	5	400	290	0.81	5.15	4	12	599
285	5	–0.12	300	2.00 –0.81	16.2	16	5	408	293	0.81	5.15	4	12	605
287	5	–0.12	300	2.00 –0.81	16.2	16	5	408	295	0.81	5.15	4	12	610
288	5	–0.12	305	2.00 –0.81	16.2	16	5	415	296	0.81	5.15	4	12	611
290	5	–0.12	305	2.00 –0.81	16.2	16	5	415	298	0.81	5.15	4	12	615
292	5	–0.12	305	2.00 –0.81	16.2	16	5	415	300	0.81	5.15	4	12	620
295	5	–0.12	310	2.00 –0.81	16.2	16	5	426	303	0.81	5.15	4	12	625
297	5	–0.12	310	2.00 –0.81	16.2	16	5	426	305	0.81	5.15	4	12	630
298	5	–0.12	315	2.00 –0.81	16.2	16	5	435	306	0.81	5.15	4	12	631
300	5	–0.12	315	2.00 –0.81	16.2	16	5	435	308	0.81	5.15	4	12	636
305	6	–0.15	322	2.00 –0.90		16(20)	6	755	315	0.81	6.2	5	15	810
310	6	–0.15	327	2.00 –0.90		16(20)	6	770	320	0.89	6.2	5	15	823
315	6	–0.15	332	2.00 –0.90		16(20)	6	785	325	0.89	6.2	5	15	837
320	6	–0.15	337	2.00 –0.90		16(20)	6	800	330	0.89	6.2	5	15	850
325	6	–0.15	342	2.00 –0.90		16(20)	6	810	335	0.89	6.2	5	15	864
330	6	–0.15	347	2.00 –0.90		16(20)	6	820	340	0.89	6.2	5	15	876
335	6	–0.15	352	2.00 –0.90		16(20)	6	830	345	0.89	6.2	5	15	890
340	6	–0.15	357	2.00 –0.90		16(20)	6	840	350	0.89	6.2	5	15	903
345	6	–0.15	362	2.00 –0.90		16(20)	6	855	355	0.89	6.2	5	15	916
350	6	–0.15	367	2.00 –0.90		16(20)	6	870	360	0.89	6.2	5	15	929
355	6	–0.15	372	2.00 –0.90		16(20)	6	880	365	0.89	6.2	5	15	942
360	6	–0.15	377	2.00 –0.90		16(20)	6	890	370	0.89	6.2	5	15	955
365	6	–0.15	382	2.00 –0.90		16(20)	6	906	375	0.89	6.2	5	15	968
370	6	–0.15	387	2.00 –0.90		16(20)	6	920	380	0.89	6.2	5	15	981
375	6	–0.15	392	2.00 –0.90		16(20)	6	932	385	0.89	6.2	5	15	994
380	6	–0.15	397	2.00 –0.90		16(20)	6	940	390	0.89	6.2	5	15	1008
385	6	–0.15	402	2.00 –1.00		16(20)	6	950	395	0.89	6.2	5	15	1021
390	6	–0.15	407	2.00 –1.00		16(20)	6	960	400	0.89	6.2	5	15	1033
395	6	–0.15	412	2.00 –1.00		16(20)	6	972	405	1	6.2	5	15	1047
400	6	–0.15	417	2.00 –1.00		16(20)	6	980	410	1	6.2	5	15	1060
410	7	–0.15	430	2.00 –1.00		23(26)	6	1380	422	1	7.2	6	18	1307
420	7	–0.15	440	2.00 –1.00		23(26)	6	1410	432	1	7.2	6	18	1338
430	7	–0.15	450	2.00 –1.00		23(26)	6	1440	442	1	7.2	6	18	1369
440	7	–0.15	460	2.00 –1.00		23(26)	6	1470	452	1	7.2	6	18	1401
450	7	–0.15	470	2.00 –1.00		23(26)	6	1510	462	1	7.2	6	18	1431
460	7	–0.15	480	2.00 –1.00		23(26)	6	1550	472	1	7.2	6	18	1464
470	7	–0.15	490	2.00 –1.00		23(26)	6	1595	482	1	7.2	6	18	1495
480	7	–0.15	500	2.00 –1.00		23(26)	6	1640	492	1	7.2	6	18	1526
490	7	–0.15	510	3.00 –1.50		23(26)	6	1685	502	1	7.2	6	18	1558
500	7	–0.15	520	3.00 –1.50		23(26)	6	1730	512	1	7.2	6	18	1588
510	8	–0.15	535	3.00 –1.50		23(26)	6	2250	524	1	8.2	7	21	1894
520	8	–0.15	545	3.00 –1.50		23(26)	6	2290	534	1	8.2	7	21	1931
530	8	–0.15	555	3.00 –1.50		23(26)	6	2335	544	1	8.2	7	21	1968
540	8	–0.15	565	3.00 –1.50		23(26)	6	2380	554	1	8.2	7	21	2004
550	8	–0.15	575	3.00 –1.50		23(26)	6	2430	564	1	8.2	7	21	2041
560	8	–0.15	585	3.00 –1.50		23(26)	6	2495	574	1	8.2	7	21	2078
570	8	–0.15	595	3.00 –1.50		23(26)	6	2560	584	1	8.2	7	21	2114
580	8	–0.15	605	3.00 –1.50		23(26)	6	2625	594	1	8.2	7	21	2151
590	8	–0.15	615	3.00 –1.50		23(26)	6	2700	604	1	8.2	7	21	2188
600	8	–0.15	625	3.00 –1.50		23(26)	6	2770	614	1	8.2	7	21	2221
650	9	–0.20	680	3.00 –1.50		23(34)	6	3600	666	1	9.3	8	24	2753
700	9	–0.20	730	4.00 –2.00		23(34)	6	4120	716	1	9.3	8	24	2966
750	9	–0.20	785	4.00 –2.00		23(34)	9	4540	768	1	9.3	9	27	3566
800	9	–0.20	835	4.00 –2.00		23(34)	9	5450	818	1	9.3	9	27	3800
850	9	–0.20	890	4.00 –2.00		23(34)	9	5990	870	1	9.3	10	30	4500
900	9	–0.20	940	4.00 –2.00		23(34)	9	6740	920	1	9.3	10	30	4766
950	9	–0.20	1000	4.00 –2.00		23(34)	9	7930	972	1	9.3	11	33	5608
1000	9	–0.20	1050	4.00 –2.00		23(34)	9	8880	1022	1	9.3	11	33	5825
